Product Description
- Compact, cost-effective power for snow plow lift and angle operations.
- Includes everything you need to power the job.
- Unit contains two independent circuits: 3 way for plow hoist; 4 way for power angle.
- Easy fingertip controls.
- Crossover relief valve protects cylinder and blade should the plow strike a hidden object.

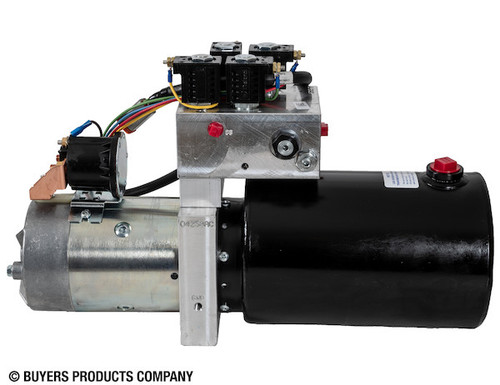

- The 4 Way/3 Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations. It includes pre-wired rocker switch controls that provide 4-way/3-position fingertip control for Power Up/Hold/Gravity Down (plow hoist), and 4-way for exact left-right angling of the blade. A crossover relief valve protects the angle cylinder and the plow blade should the plow strike a hidden object.
Product Common Use: Snow Plows
SPECIFICATIONS
- Manual or Push Button - Push Button
- Mounting Position - Horizontal
- Reservoir Material - Carbon Steel
- Motor Horsepower - 2 HP
- Reservoir Volume (Gal) - 0.83
- Pressure Rating - 2000 PSI
- Motor Voltage - 12 VDC
- Width - 6.00 "
- Length - 17.38 "
- Height - 13.81 "
- Spool Action - Power Up/Gravity Down, Power Up/Power Down
- Number of Cartridge Valves - 4
- Outlet Port Size - 1/4 NPT
- Controller Included? - Y
- Control Cable Length - 72 "
- Motor Power (kW) - 1.5
