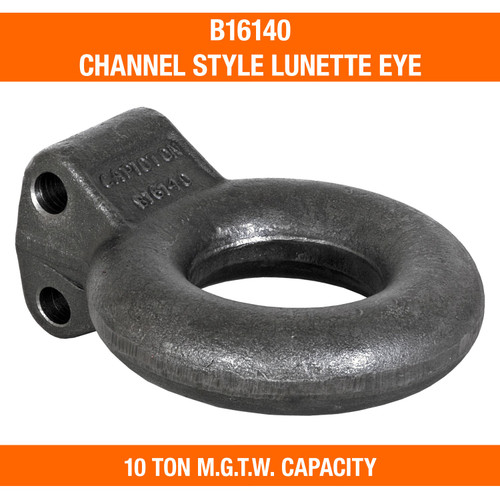

B16140 - Plain 10-Ton Forged Steel Tow Eye - 3 Inch I.D.

Product Description

• Achieve level towing by connecting the tow eye to an adjustable channel bracket.
• Strong forged steel construction can handle towing weights up to 20,000 lb.

The Forged Steel Tow Eyes from Buyers Products are designed to be bolted into an adjustable channel bracket. This allows you to position the tow eye or lunette for level towing.

Simply bolt the eye into the channel bracket at the position that fits your needs, and connect to the pintle hook on your truck.

The eye has an interior diameter of 3 in. and is made of rugged forged steel to handle a maximum gross towing weight of 20,000 lbs.

SPECIFICATIONS

• ColorNone
• MaterialForged Steel cm
• FinishPlain
• Eye Inner Diameter (in.)3.00 "
• Eye Outer Diameter (in.)6.25 "
• M.G.T.W. (lbs.)20,000 lb
• M.V.L. (lbs.)2,000 lb
• Mounting Hole Diameter (in.)0.656 "
• Vertical Hole Spacing (in.)2.00 "
• Drawbar Section (in.)1.625 "

Product Common Use: Construction Trailers, Equipment Haulers
