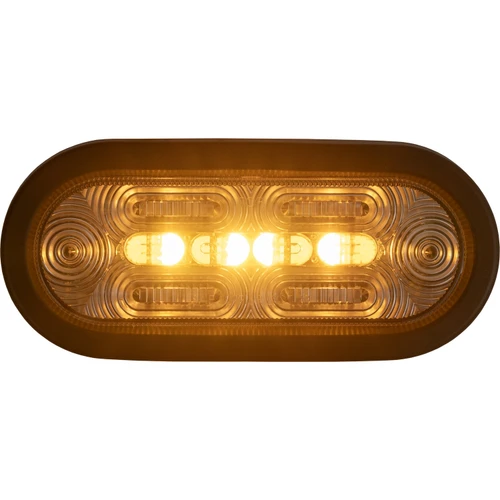

5626428 - Combination 6 Inch Oval LED Stop/Turn/Tail, Backup and Strobe Light with 22 LEDs

Product Description

• All-in-One Combination Light: Combines a DOT-compliant stop/turn/tail light, backup light, and high-intensity warning strobe into a single fixture, reducing installation time and eliminating the need for multiple separate lights.
• FMVSS/CMVSS 108 Compliant: Meets DOT requirements for stop/turn/tail and backup lighting, ensuring legal operation and dependable performance on work trucks and commercial vehicles.
• 5 Selectable Flash Patterns: Features five warning flash patterns with both synchronous and alternating functions, making it easy to coordinate multiple lights for a professional, high-visibility warning system.
• SAE J595 Class 1 & CA13 Certified: Delivers powerful, industry-compliant warning performance that meets visibility standards for demanding commercial and municipal applications.
• Rugged IP67 Weatherproof Construction: Fully sealed against dust and water intrusion, providing reliable operation in harsh weather and challenging jobsite conditions.

Buyers Products Combination 6 Inch Oval LED Stop/Turn/Tail, Backup, and Strobe Light with 22 LEDs packs a DOT stop/turn/tail, DOT backup, and warning strobe into a single all-purpose fixture. Available with amber/clear strobe (5626428) or amber/green strobe (5626429).

This versatile light is CA13 certified and rated IP67 for extreme dust resistance and waterproofing. The Stop/Turn/Tail and Backup functions meet FMVSS/CMVSS 108 regulations. The strobe features 5 flash patterns with synchronous and alternating functions and is rated SAE Class 1.

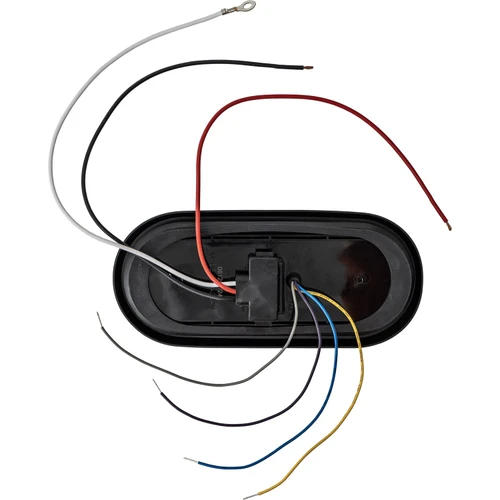

Rubber Grommet mounting. The light has 7-3/4 in. leads with blunt cut ends.

SPECIFICATIONS

• Amp draw at 12 Volts - 1.3 A
• Height - 3.2 "
• Housing Material - Plastic
• Lens Material - Polycarbonate
• Lens Shape - Oval
• Mount Type - Rubber Grommet
• Number of Wires - 4
• Type of Plug - Blunt Cut
• Base / Mount Type - Rubber Grommet
• Overall Width - 7.5 "
• Voltage - 12-24 VDC
• Lead Length - 7.75 "
• Number of LEDs - 22
• Color - Amber/Clear
• IP Rating - IP67
• SAE Classification - Class 1
• Flash Patterns - 5

Product Common Use: Utility Vehicles, Service Vehicles, Construction Vehicles, Refuse Vehicles
