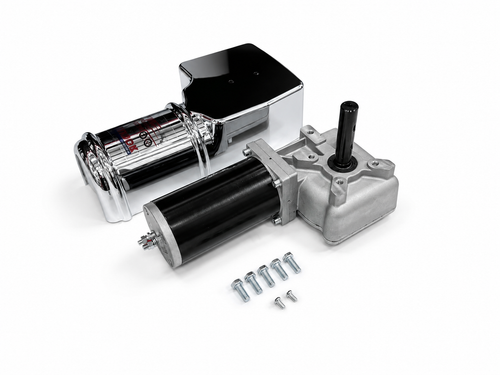

1200W/90:1 - 2 HP - Universal Replacement Dump Truck / Trailer Tarp Motor w/ Chrome Cover - 3 Yr Warranty

Product Description

• Our STRONG 1200-WATT tarp motor has a 5 Bolt Pattern that will work with 3 or 4 bolt system for Easy Mounting. It has a 90:1 Gear Ratio, Sealed Worm Gear with universal 3/4" x 4" Shaft with 2 holes (one at 1” and the second at 2”) for thru bolts
• UNIVERSAL FIT for Dump Bodies up to 40 feet and works with most Electric Tarp Systems, Replaces: Roll Rite, Donovan, Tarping Systems Inc, Kym Industries, TarpUSA, Aero, US Tarp, Buyers, Pull Tarp, Mountain Tarp
• One of the Strongest Tarp Motors on the market! 12 VDC, 2 HP, 1200-WATTS, 40 AMPS, Reversing Gear Motor, 50 NM Operating Torque
• 3 Year Warranty - Chrome Cover and All Mounting Hardware Included

This motor replaces:

Aero PowerPlus & RS/RA

Donovan 61G/61L/4422

Pulltarps 517-0906/517-0909

Roll-Rite 1030/1031

SHUR-CO 1703823

Superwinch 90-33319/90-33295

Tarps and Beyond 1000XT/2000XT

U.S. Tarps Covering America 11521/13655

Specifications:

• 2 Horsepower

• Direct drive 12VDC motor

• 90:1 Gear Ratio

• 1200 WATTS

• 90 tooth drive gear for more torque and extended life

• Sealed gearbox maintains lubrication

• 3-1/8 x 3/4" extended output shaft fits wide range of tarp systems

• Sealed drive shaft and encased bearing prevents oil contamination

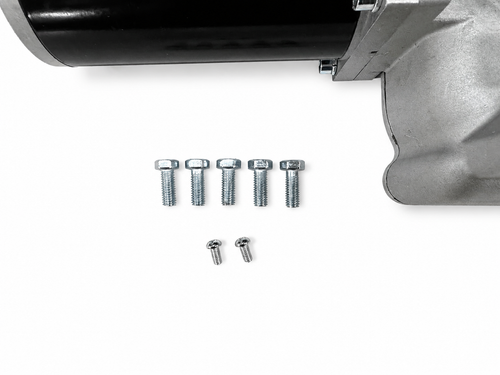

• Chrome/plastic cover and fasteners included

• Fits common truck and trailer tarp systems

• 5-bolt adjustable bolt pattern

• 5 mounting holes, fits all 3-bolt and 4-bolt configuration 100% tested for quality control
