Product Description

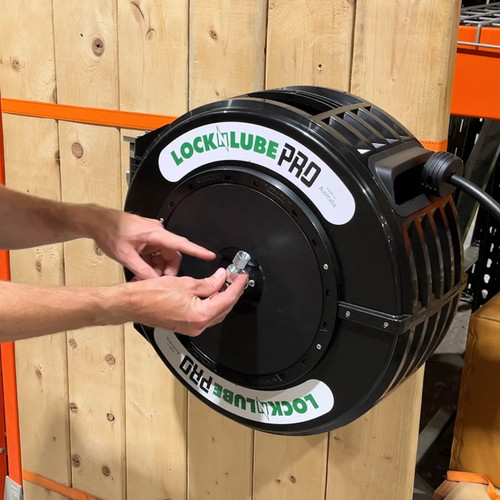

The LockNLube PRO Retractable Grease Hose Reel is built for workshops, service trucks, and industrial applications where reliability under pressure matters. It features a 50 ft, 1/4" reinforced synthetic rubber hose with dual steel-wire braid, rated to 5,800 PSI working pressure (23,200 PSI burst test). The automatic rewind with adjustable ratchet stop keeps hoses organized and easy to manage, while the UV- and impact-resistant housing protects against tough environments.
A heavy-duty galvanized steel bracket allows secure mounting to walls, benches, or ceilings, and 1/4" NPT female inlet with 1/4" NPT male outlet connections make setup simple. With a total unit weight of 34 lbs, this reel is fully serviceable, backed by a 10-year warranty, and Made in Australia — Built Outback-tough for years of dependable high-pressure greasing.
- 50 ft Reinforced Hose: Rated 5,800 PSI working pressure (23,200 PSI burst test)
- Automatic Rewind: Smooth rewind with adjustable return/rewind speed
- Durable Housing: UV- and impact-resistant enclosure for harsh environments
- Heavy-Duty Bracket: Galvanized steel for wall, bench, or ceiling mounting
- Warranty & Serviceability: 10-Year Warranty · Fully Repairable
- Made in Australia
| Hose Size | 1/4" (DN 6) |
|---|---|
| Standards | EN 853 2SN / SAE 100R2AT |
| Construction | Reinforced synthetic rubber hose with 2-wire steel braid reinforcement (SAE 100R2 / EN 853 2SN) |
| Hose Material | Oil- and abrasion-resistant synthetic rubber tube with synthetic rubber cover |
| Max Working Pressure | 5,800 PSI (40.0 MPa) |
| Minimum Burst Pressure* | 23,200 PSI (160.0 MPa) |
| Temperature Range | −40 °F to +212 °F (−40 °C to +100 °C) |
| Minimum Bend Radius | 3.5" (90 mm) |
| Weight | 0.28 lb/ft (0.42 kg/m) |
| Total Unit Weight | 34 lbs (15.4 kg) |
| Reel Inlet | 1/4" NPT Female |
| Hose Outlet | 1/4" NPT Male |
