Product Description
- Spring-loaded bolt can be locked in the open position as needed.
- Choose between a 5/8 in. stainless steel or heat-treated steel pin.
- Can be ordered unassembled for custom installation.
- Stainless steel spring and spring pin provides the ultimate in corrosion resistance.

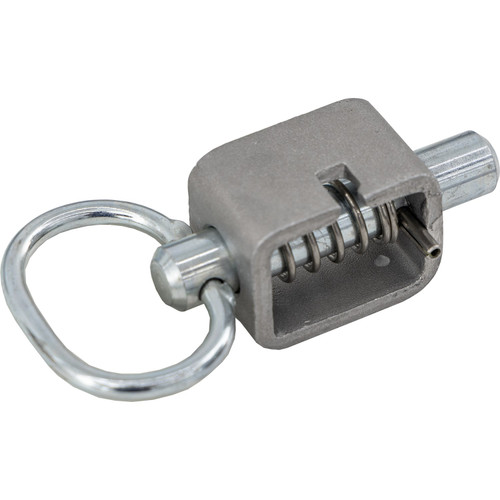

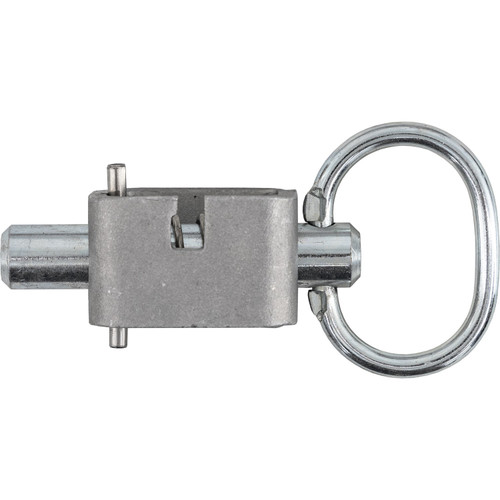

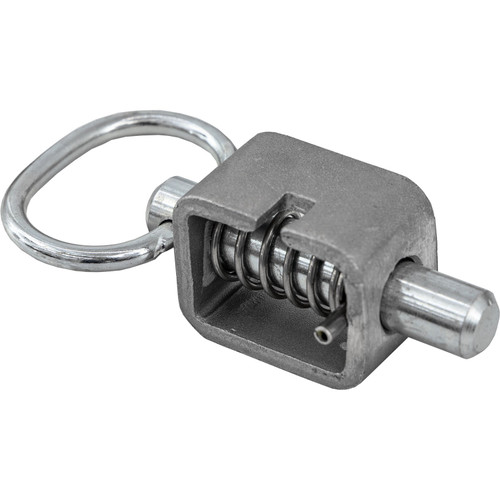

Buyers Products Weld-On Spring Latch is designed for 90° engage application. The spring-loaded mechanism can be locked in the open position; turn to put the spring in the closed position.
The latch comes with either a heat-treated or stainless steel tube. Both feature a stainless steel pin and spring.
Latch can be ordered unassembled for a custom installation. Extended plunger model is also available.
SPECIFICATIONS
- Keeper (y/n) - No
- Bolt Dia. (in.) - 0.625"
- Bolt Length (in.) - 0.84"
- Housing Length (in.) - 2.00"
- Housing Height (in.) - 1.25"
- Housing Width (in.) - 1.50"
- Mount Type - Weld-on
- Housing Material - Aluminum
- Housing Finish - Plain
- Handle Finish - Zinc Plated
- Bolt Travel - 19.00/32.00
- Pin Length - 0.84"
- Handle Length - 1.75"
- Latch Style - Spring Latch
- Bolt Material - Stainless Steel
- Bolt Finish - Plain
- Handle Material - Aluminum
Product Common Use: Trailer Equipment, Truck Equipment
