Product Description
- Combines a marker light and a strobe light into one 6-inch light.
- Can be surface mounted or recessed rubber mounted.
- Compliments the 5626432 Combination LED Stop/Turn/Tail, Backup, and Strobe Light by having the same 6-inch oval housing that is suited for front or side mounting.
- You can synchronize the front and rear strobes to the same flash pattern so that they work together in simultaneous or alternating flash patterns.

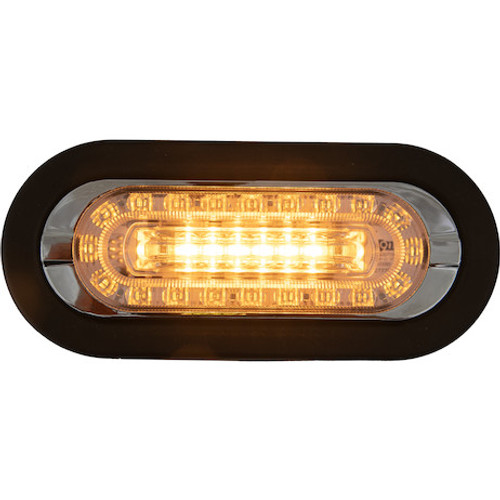

Buyers Products Combination 6 Inch Oval Marker with Strobe Light combines a marker light and strobe light into one 6-inch fixture.
This versatile, SAE J595-rated light is CA T13 certified and meets FMVSS-108 regulations. It is rated IP69K for extreme dust resistance and waterproofing. The amber strobe features 19 flash patterns; amber/clear features 12 flash patterns; amber/green features 12 flash patterns. All three strobes have synchronous and alternating capabilities when paired with other strobes.
Multiple mounting options are included for your convenience. A grommet and mounting hardware are included for surface or recessed mounting. The light has 7-3/4 in. leads with blunt cut ends.
Product Common Use: Utility Vehicles, Service Vehicles, Construction Vehicles, Refuse Vehicles
SPECIFICATIONS
- Amp draw at 12 Volts - .83 A
- Certification - SAE J595, CA T13, FMVSS-108
- Color - Amber/Clear
- Hard Wired or Plug - Hard Wired
- Height - 3 1/4 "
- Housing Material - Plastic
- Lens Material - Polycarbonate
- Lens Shape - Oval
- Mount Type - Recessed or Surface
- Number of Wires - 5
- Type of Plug - Blunt Cut
- Wattage - 10 W
- Depth - 1 "
- Base / Mount Type - Recessed or Surface
- Overall Width - 2 5/8 "
- Number of Contacts - 5
- Plug Included - No
- Voltage - 12 VDC
- Operating Temperature: -30 C to +70 C °F
- Lead Length - 7 "
- Built-In Switch - No
- Number of LEDs - 26
- IP Rating - IP67, IP69K
- SAE Classification - SAE J595
- California Title 13 - True
- Overall Length - 7 3/4 "
- Flash Patterns - 12
