Product Description
- Available in bulk (sold in multiples of 10) or individually in a kit that include a grommet and plug for installation.
- Uses a PL-3 connection for the stop/turn/tail light and a PL-2 for the backup.
- Backed with a limited lifetime warranty.

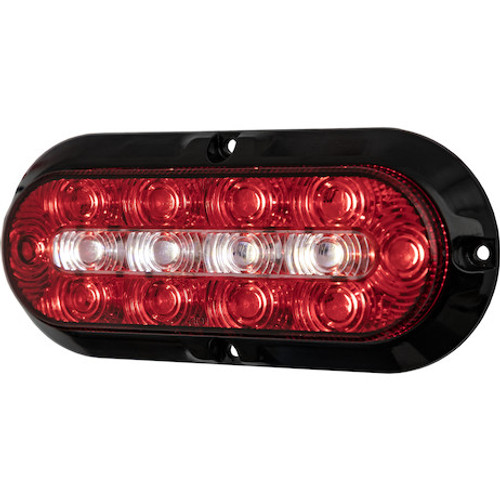

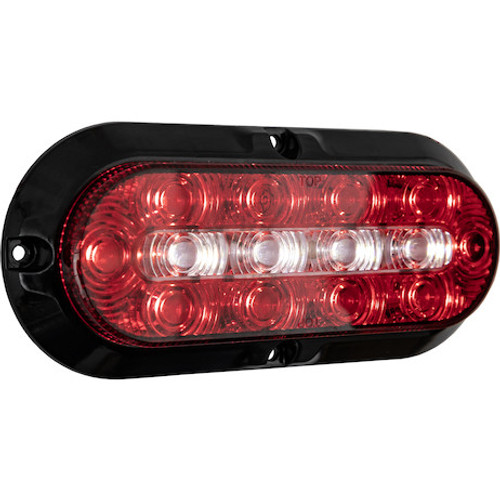

Buyers Products 6 Inch Oval Stop/Turn/Tail and Backup Light is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
The light is a convenient and efficient way to get a red stop/turn/tail and clear backup light in a single fixture. It uses a PL-3 connection for the stop/turn/tail light and a PL-2 for the backup.
Both 5626130 & 5626131 are IP65 rated.
Lights are available individually or in a kit that includes a grommet and plug for installation. They are backed with a limited lifetime warranty.
SPECIFICATIONS
- Amp draw at 12 Volts - 0.106 A
- Certification - FMVSS/CMVSS 108
- Hard Wired or Plug - Plug
- Height - 3.290"
- Width - 7.520"
- Housing Material - Plastic
- Lens Material - Polycarbonate
- Lens Shape - Oval
- Number of Wires - 5
- Type of Plug - Blunt Cut
- Wattage - 1.27 W
- Base / Mount Type - Surface Mount
- Plug Included - Yes
- Voltage - 12-24 VDC
- Built-In Switch - No
- Number of LEDs - 14
- Color - Red
- IP Rating - IP67
